LLM.int8(): 8-bit Matrix Multiplication for Transformers at Scale

An outlier-aware INT8 matrix multiplication method that enables large Transformer inference with near-full-precision accuracy.

Tim Dettmers, Mike Lewis, Younes Belkada, Luke ZettlemoyerAug 15, 2022NeurIPS 202212 min read

Paper

FOUNDATIONALLLM QuantizationAdvanced

Abstract

The paper introduces LLM.int8(), an INT8 matrix-multiplication procedure for Transformer language models at billion-parameter scale.
It targets feed-forward and attention-projection matrix multiplications.
The method cuts inference memory roughly in half while preserving full-precision performance.
A 175B-parameter 16/32-bit checkpoint can be converted to INT8 and used directly without performance degradation.
The method combines vector-wise quantization with mixed-precision decomposition.
More than 99.9% of values are multiplied in 8-bit.
The paper demonstrates inference up to 175B parameters.
OPT-175B and BLOOM-176B are highlighted as large-scale examples.

Introduction

For models at and beyond 6.7B parameters, feed-forward and attention projection layers account for about 95% of parameters.
Those layers account for roughly 65–85% of computation.
Earlier 8-bit Transformer quantization methods could reduce memory but degrade performance.
Prior studies largely focused on models below 350M parameters.
The paper identifies degradation-free multi-billion-parameter quantization as an open challenge.
The central difficulty is preserving precision in the presence of emergent outlier features.
The paper studies why conventional quantization fails as model size increases.

Problem

The problem is to perform Transformer matrix multiplication in INT8 without meaningful accuracy degradation.
A single tensor-wide scale can let one extreme value reduce precision for many ordinary values.
More localized scaling is needed to reduce quantization error.
Vector-wise quantization alone becomes insufficient when systematic feature outliers emerge.
These outliers are sparse but disproportionately important to model behavior.
The method must preserve high precision for those dimensions while keeping most computation in INT8.
The solution must remain memory efficient for very large models.

Background

LLM.int8() has two principal components: vector-wise quantization and mixed-precision decomposition.
Vector-wise quantization assigns separate normalization constants to input rows and weight columns.
INT8 matrix multiplication is accumulated in INT32.
The INT32 output is dequantized using the corresponding row/column scale factors.
Mixed-precision decomposition isolates outlier feature dimensions.
Outlier dimensions are multiplied in FP16.
Non-outlier dimensions are multiplied in INT8.
The two outputs are accumulated in FP16.

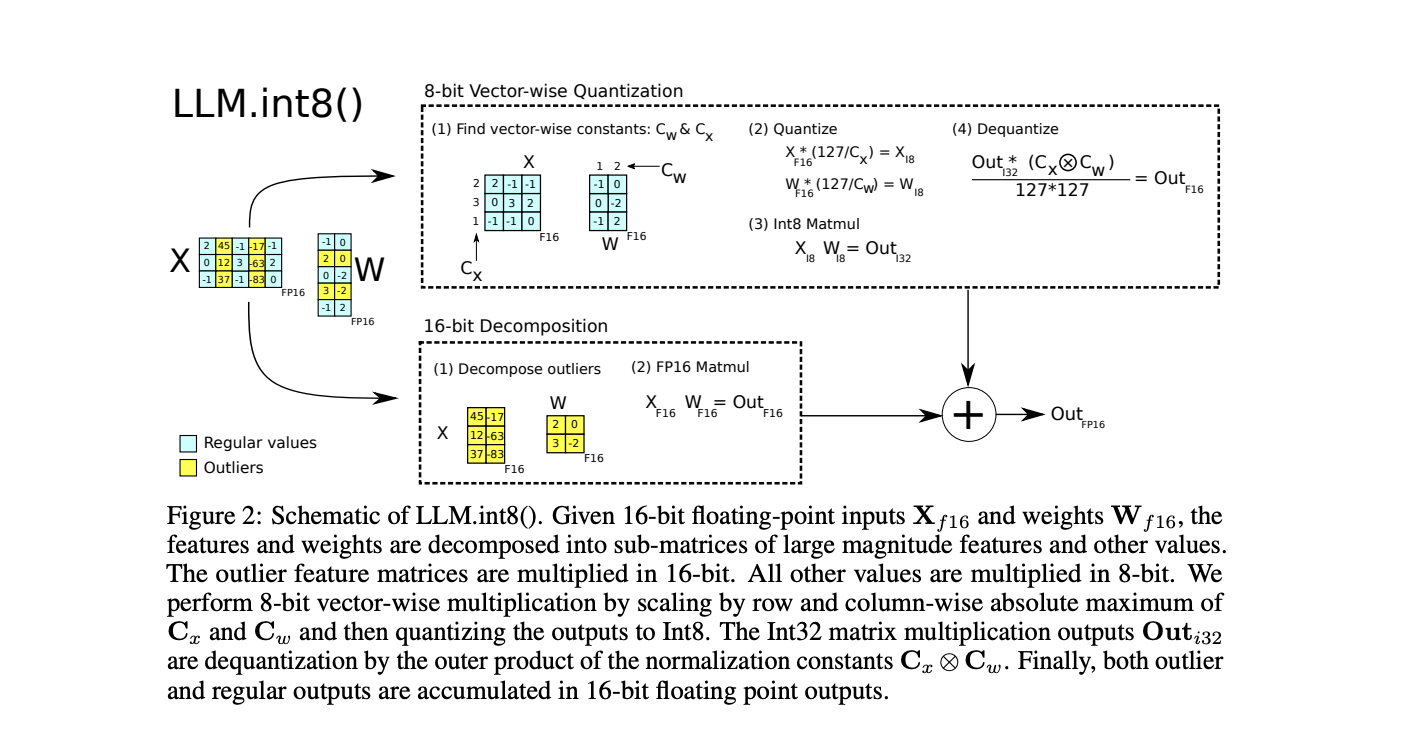

Methodology

The method starts from FP16 inputs and FP16 weights.
Row-wise and column-wise absolute maxima provide vector-wise scaling constants.
Quantized values are mapped into the INT8 range.
INT8 multiplication produces INT32 accumulations.
Dequantization uses the outer product of input-row and weight-column normalization constants.
Outlier dimensions are detected using a hidden-state magnitude threshold.
The paper finds alpha = 6.0 sufficient to reduce degradation close to zero.
Outlier and regular matrix products are combined into FP16 outputs.

Architecture

Quantization is applied primarily to feed-forward and attention-projection linear layers.
Matrix multiplication is treated as a sequence of independent inner products.
Vector-wise scaling uses one constant per input row and one per weight column.
Dequantization is equivalent to applying an outer product of those constants.
Outlier feature dimensions are selected across the hidden dimension.
The same feature dimensions can contain outliers across many sequence positions.
The implementation was released through bitsandbytes and integrated with Hugging Face Transformers.

Dataset

Language-model experiments use dense autoregressive Transformers from 125M to 13B parameters.
The models were pretrained in fairseq.
Training corpora include Books, English Wikipedia, CC-News, OpenWebText, CC-Stories, and English CC100.
C4 validation perplexity is used to measure quantization degradation.
C4 is a subset of Common Crawl.
NVIDIA A40 GPUs were used for the language-model evaluation.
OPT models are used for zero-shot downstream evaluation.
Zero-shot evaluation uses the EleutherAI language-model evaluation harness.

Training

Baselines include tensor-wise absmax quantization.
Zeropoint quantization is evaluated.
Row-wise quantization is evaluated.
Vector-wise quantization is evaluated.
Vector-wise quantization plus decomposition is evaluated as LLM.int8().
FP32/FP16 baselines provide the full-precision reference.
The comparisons are designed to expose scaling failures rather than only single-model accuracy.

Experiments

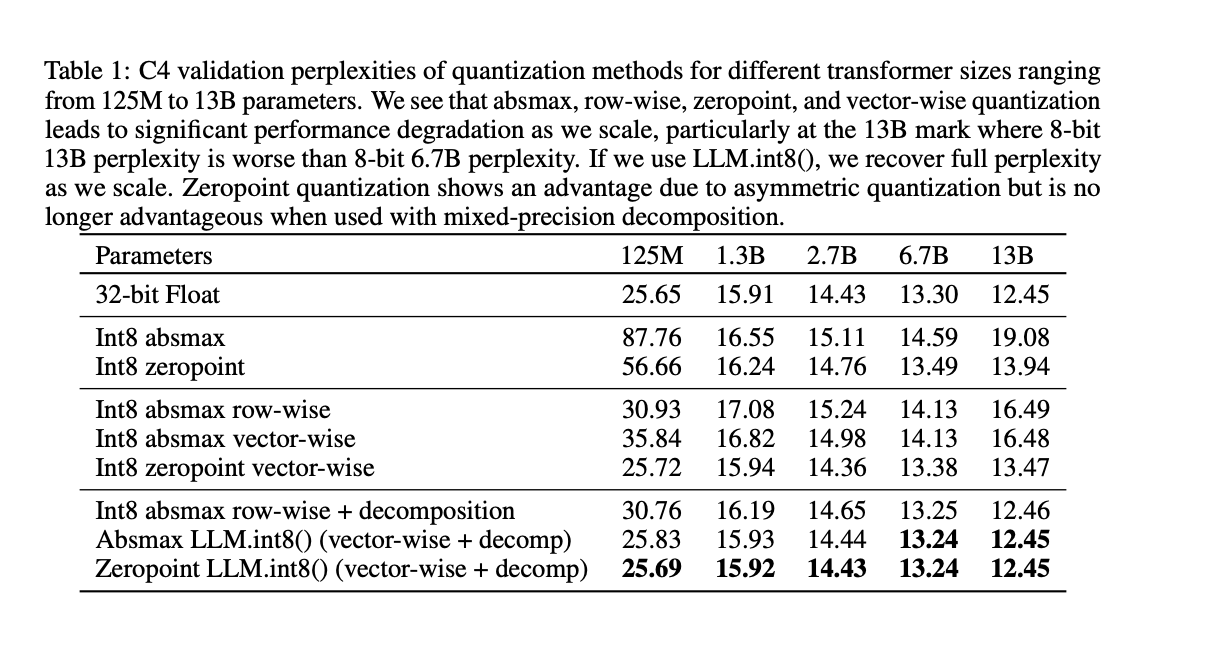

On C4, LLM.int8() maintains a favorable scaling trend from 125M through 13B parameters.
At 13B, FP32 perplexity is 12.45 and LLM.int8() absmax is 12.45.
LLM.int8() zeropoint at 13B also reaches 12.45 perplexity.
Plain INT8 absmax reaches 19.08 perplexity at 13B.
Plain row-wise INT8 reaches 16.49 perplexity at 13B.
Vector-wise INT8 reaches 16.48 perplexity at 13B.
LLM.int8() restores approximately full-precision perplexity.
It maintains full 16-bit zero-shot performance across OPT models up to 175B.

Baselines

Conventional absmax, row-wise, and zeropoint quantization show worsening scaling behavior.
Zeropoint helps with asymmetric distributions but does not solve the large-model outlier problem.
Vector-wise quantization improves over global scaling but remains insufficient at larger scales.
Adding mixed-precision decomposition restores lost precision.
The experiments show that outlier handling is a critical design issue.
For BLOOM-176B, the reported model-memory reduction is 1.96×.
The method therefore preserves quality while substantially reducing parameter memory.

Results

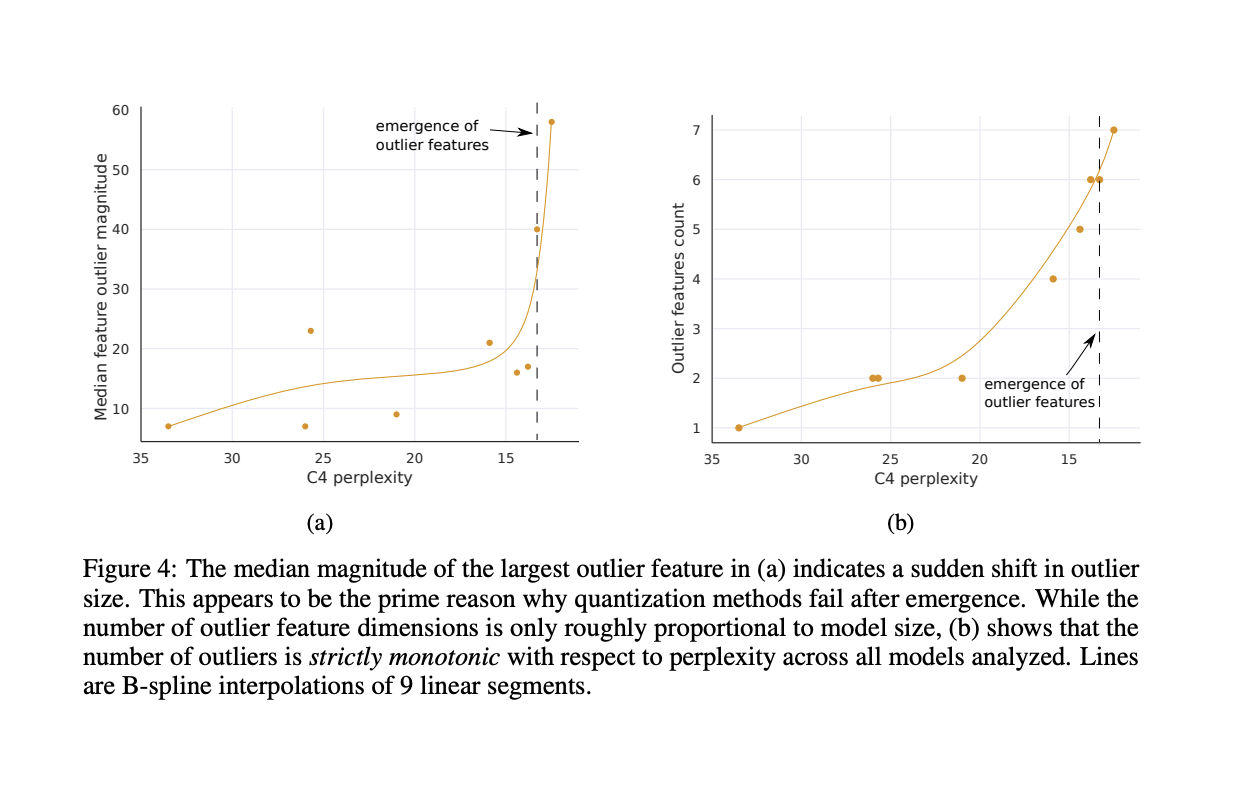

Large-magnitude features emerge systematically as Transformers scale.
Features can reach magnitudes up to about 20× larger than other dimensions.

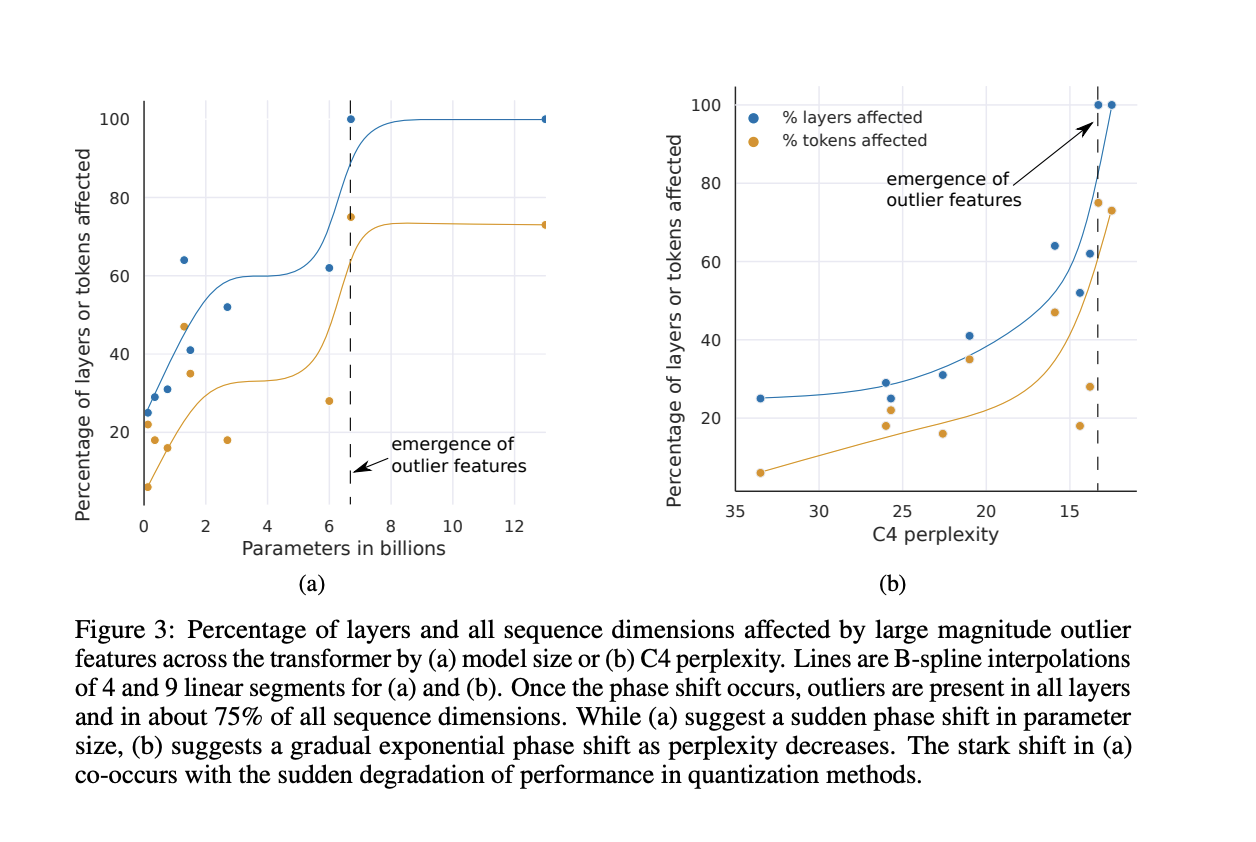

Outliers first appear in roughly 25% of layers at smaller scales.
Around 6.7B parameters, a phase shift occurs.
At that scale, all Transformer layers are affected.
Approximately 75% of sequence dimensions can be affected by extreme-magnitude features.
Around 150,000 outliers can occur per sequence at 6.7B scale.
Those outliers are concentrated in only about six feature dimensions.

Ablation

Outlier features represent only about 0.1% of input features but strongly affect model behavior.
Zeroing the identified outlier dimensions can reduce top-1 attention softmax probability mass by more than 20%.
Removing them can increase validation perplexity by roughly 600–1000%.
Removing an equal number of random features reduces probability mass by at most about 0.3%.
Random feature removal increases perplexity by only about 0.1% in the reported comparison.
The contrast shows that the outliers are systematic and important rather than ordinary numerical noise.
Preserving those dimensions in FP16 enables aggressive quantization elsewhere.

Limitations

Error Analysis

Outlier feature dimensions contain at least one hidden-state value above the selected threshold.
The reported threshold alpha = 6.0 works effectively across the studied Transformers.
For models up to 13B, the number of outlier dimensions is no larger than seven.
The additional high-precision computation consumes about 0.1% extra memory.
More than 99.9% of values remain in INT8 multiplication.
This sparse FP16 path preserves the memory benefit of quantization.
The decomposition operates at matrix-multiplication time rather than retraining the model.
This enables immediate post-training conversion.

Conclusion

LLM.int8() can introduce inference overhead for models below about 6.7B parameters.
Smaller models commonly fit on available GPUs, reducing the practical need for quantization.
For large matrix multiplications comparable to those in 175B models, the paper reports about 2× speedup in relevant measurements.
End-to-end inference runtime is maintained for large models such as BLOOM-176B in the reported experiments.
Memory reduction is the primary objective rather than universal latency improvement.
The software was open-sourced.
Hugging Face Transformers integration made the method broadly usable for linear layers.

References

The paper establishes degradation-free INT8 inference at multi-billion and 175B scale.
It identifies systematic activation outliers as the key reason naive INT8 methods fail.
Vector-wise quantization provides finer-grained scaling for ordinary values.
Mixed-precision decomposition preserves high precision for sparse important feature dimensions.
The result retains roughly half the memory of FP16 representation for the quantized matrix components.
The work demonstrates that successful LLM quantization requires understanding model structure.
It became foundational for later outlier-aware and mixed-precision LLM quantization research.
The implementation connected the research result directly to practical LLM deployment.
